#Displaying Data from APIs on a Map

MaptimeATL!

Mollie Taylor

June 22, 2015

Fork me at: https://github.com/maptimeatl/APIs-101
---
# Sponsors
---
layout: false
class: center, middle
![:scale 50%](images/iron-yard-logo.svg)
---
layout: false
class: center, middle
![:scale 50%](images/cartodb_image02.png)
# 🍕
---
name: inverse
layout: true
class: center, middle, inverse
---
# Maptime!
---
layout: false
## What is Maptime?
* Time for making maps!
* Founded in San Francisco
* 65 chapters worldwide
* People at all knowledge levels
* [http://maptime.io/](http://maptime.io/)
---
## Show-and-Tell
* Your work
* Something you learned
* A cool map you found
* Etc.

* ~5 minutes per person
---
## Next meetups:
### [Hack Night with Code For Atlanta](http://www.meetup.com/MaptimeATL/events/223398994/)
* Monday, July 13, 6:30pm
* AT&T Drive Studio, Midtown

### [Instructional Meetup (Topic TBD)](http://www.meetup.com/MaptimeATL/)
* Monday, July 27, 6:30pm
* The Iron Yard

### http://www.meetup.com/MaptimeATL/
---
## Slack
### http://slack.codeforatlanta.org/

\#maptime

---
name: inverse
layout: true
class: center, middle, inverse
---
#Displaying Data from APIs on a Map
---
layout: true
class: center, middle
---

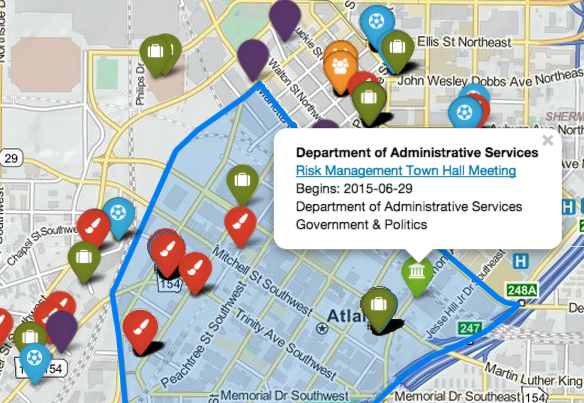

## Example (JS)
![:scale 75%](images/eventbrite-south-downtown.png)

http://proximityviz.com/south-downtown/eventbrite.html
---

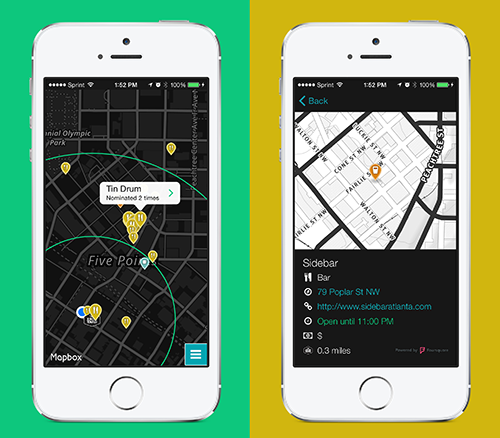

## Example (iOS)
![:scale 70%](images/tiy-lunch.png)

http://appstore.com/proximityvizllc/theironyardatllunch/
---
layout: false
# Data Sources with APIs
* Places
 * [Yelp](https://www.yelp.com/developers/documentation)
 * [Google Places](https://developers.google.com/places/)
 * [Foursquare](https://developer.foursquare.com/)
* Media
 * [Twitter](https://dev.twitter.com/overview/documentation)
 * [Instagram](https://instagram.com/developer/)
 * [Flickr](https://www.flickr.com/services/api/)
* Events
 * [Eventbrite](http://developer.eventbrite.com/)
* Weather
* Transit & Transportation
 * [MARTA](http://www.itsmarta.com/developers/default.aspx)
---
# What is an API?
* API stands for Application Programming Interface
* APIs accept a query and return data that matches that query
* APIs can be accessed through URLs, although you might need to be logged in or otherwise authenticated.
 * Base: **https://api.foursquare.com/v2/**venues/554791b8498e28eca3641d4b
 * Endpoint: https://api.foursquare.com/v2/**venues/**554791b8498e28eca3641d4b
 * Query: https://api.foursquare.com/v2/venues/**554791b8498e28eca3641d4b**
---
# Endpoints
* [Foursquare examples](https://developer.foursquare.com/docs/)

### HTTP Request Methods
* GET
* POST (Create a new entry)
* PUT (Replace)
* DELETE
---

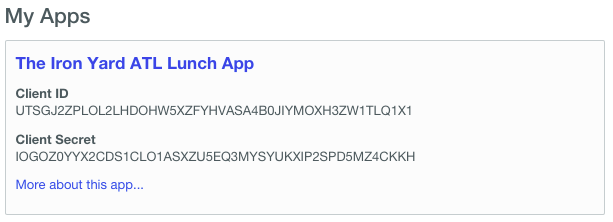

# Keys
* [Foursquare example](https://foursquare.com/developers/apps)
* Used to identify the app, developer, or user
* Access rights for API

![](images/foursquare-api-keys.png)
---
# Complete Queries
* Base URL
* Endpoint
* Query
  * Key(s)
  * Other query parameters

```js
'https://www.eventbriteapi.com/v3/events/search/' +
  '?token=E55J2U6EXE3CVF6G43VU' +
  '&location.latitude=33.74986' +
  '&location.longitude=-84.39223' +
  '&location.within=1km'```

```js
'https://api.foursquare.com/v2/venues/554791b8498e28eca3641d4b' +
  '?client_id=UTSGJ2ZPLOL2LHDOHW5XZFYHVASA4B0JIYMOXH3ZW1TLQ1X1' +
  '&client_secret=IOGOZ0YYX2CDS1CLO1ASXZU5EQ3MYSYUKXIP2SPD5MZ4CKKH' +
  '&v=20130815'```

---
# What Gets Returned?
```json
{
  "meta": {
    "code": 200
  },
  "response": {
    "venue": {
      "id": "554791b8498e28eca3641d4b",
      "name": "The Iron Yard",
      "contact": {
        "phone": "7707518046",
        "formattedPhone": "(770) 751-8046",
        "twitter": "theironyard"
      },
      "location": {
        "address": "115 Martin Luther King Jr Dr NW",
        "crossStreet": "Peachtree St SW",
        "lat": 33.75203090890745,
        "lng": -84.39147375346788,
        "postalCode": "30303",
        "cc": "US",
        "city": "Atlanta",
        "state": "GA",
        "country": "United States",
        "formattedAddress": ["115 Martin Luther King Jr Dr NW (Peachtree St SW)", "Atlanta, GA 30303", "United States"]
      },
      "canonicalUrl": "https:\/\/foursquare.com\/v\/the-iron-yard\/554791b8498e28eca3641d4b",
      "categories": [{
        "id": "4bf58dd8d48988d125941735",
        "name": "Tech Startup",
        "pluralName": "Tech Startups",
        "shortName": "Tech Startup",
        "icon": {
          "prefix": "https:\/\/ss3.4sqi.net\/img\/categories_v2\/shops\/technology_",
          "suffix": ".png"
        },
        "primary": true
      }],
      "verified": false,
      "stats": {
        "checkinsCount": 4,
        "usersCount": 3,
        "tipCount": 0,
        "visitsCount": 4
      },
      "likes": {
        "count": 0,
        "groups": []
      },
      "dislike": false,
      "ok": false,
      "specials": {
        "count": 0,
        "items": []
      },
      "photos": {
        "count": 0,
        "groups": []
      },
      "hereNow": {
        "count": 0,
        "summary": "Nobody here",
        "groups": []
      },
      "reasons": {
        "count": 0,
        "items": []
      },
      "createdAt": 1430753720,
      "tips": {
        "count": 0,
        "groups": [{
          "type": "others",
          "name": "All tips",
          "count": 0,
          "items": []
        }]
      },
      "tags": [],
      "shortUrl": "http:\/\/4sq.com\/1Piktac",
      "timeZone": "America\/New_York",
      "listed": {
        "count": 0,
        "groups": [{
          "type": "others",
          "name": "Lists from other people",
          "count": 0,
          "items": []
        }]
      },
      "pageUpdates": {
        "count": 0,
        "items": []
      },
      "inbox": {
        "count": 0,
        "items": []
      },
      "venueRatingBlacklisted": true,
      "attributes": {
        "groups": []
      }
    }
  }
}
```

### Dealing with latitude and longitude

### Errors
pseudo-code
---
# Documentation

* The endpoints and queries available depend on the documentation
* Limits
  * Rate limits
  * Policy
---
# Documentation Examples
* [Yelp](https://www.yelp.com/developers/documentation)
* [Google Places](https://developers.google.com/places/)
* [Foursquare](https://developer.foursquare.com/)
* [Twitter](https://dev.twitter.com/overview/documentation)
* [Instagram](https://instagram.com/developer/)
* [Flickr](https://www.flickr.com/services/api/)
* [Eventbrite](http://developer.eventbrite.com/)
* [MARTA](http://www.itsmarta.com/developers/default.aspx)
---

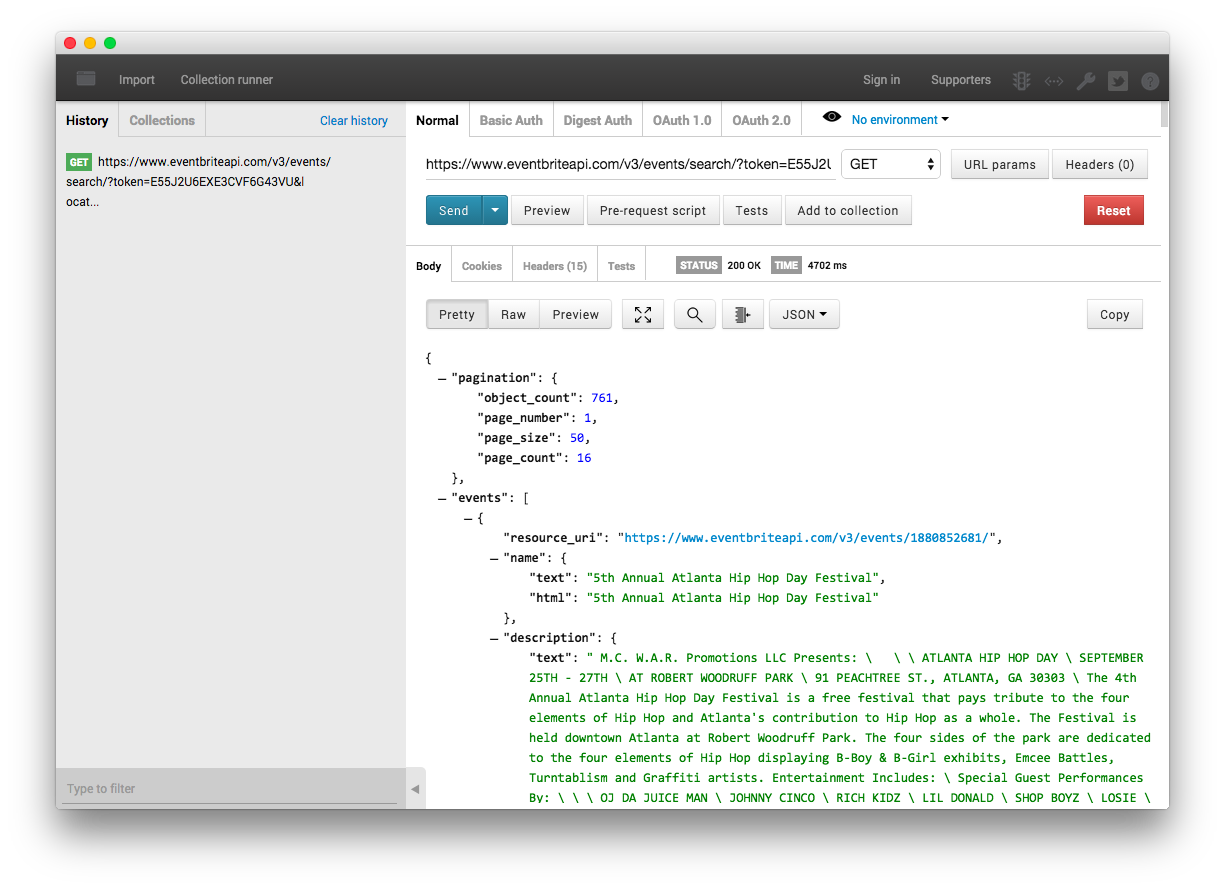

# Postman

[Download](https://chrome.google.com/webstore/detail/postman-rest-client/fdmmgilgnpjigdojojpjoooidkmcomcm?hl=en)

![:scale 90%](images/postman-eventbrite.png)
---
name: inverse
layout: true
class: center, middle, inverse
---
# JavaScript Example
---
layout: true
class: center, middle
---
## JavaScript Example
![:scale 75%](images/eventbrite-south-downtown.png)

[Download the code](https://github.com/maptimeatl/APIs-101/tree/master/code)

[View the website](http://proximityviz.com/south-downtown/eventbrite.html)
---
layout: false
# A Complete Query
```js
var EB_TOKEN = 'E55J2U6EXE3CVF6G43VU'

var API_ENDPOINT = 'https://www.eventbriteapi.com/v3/events/search/' +
  '?token=EB_TOKEN' +
  '&location.latitude=33.74986' +
  '&location.longitude=-84.39223' +
  '&location.within=1km';```
---
## Make Query and Get Response
```js
var eventbriteLayer = L.layerGroup();

$.getJSON(API_ENDPOINT
  .replace('EB_TOKEN', EB_TOKEN), function(result, status) {
    console.log("Results:");
    console.log(result);
    console.log("Status: " + status);
});```
---

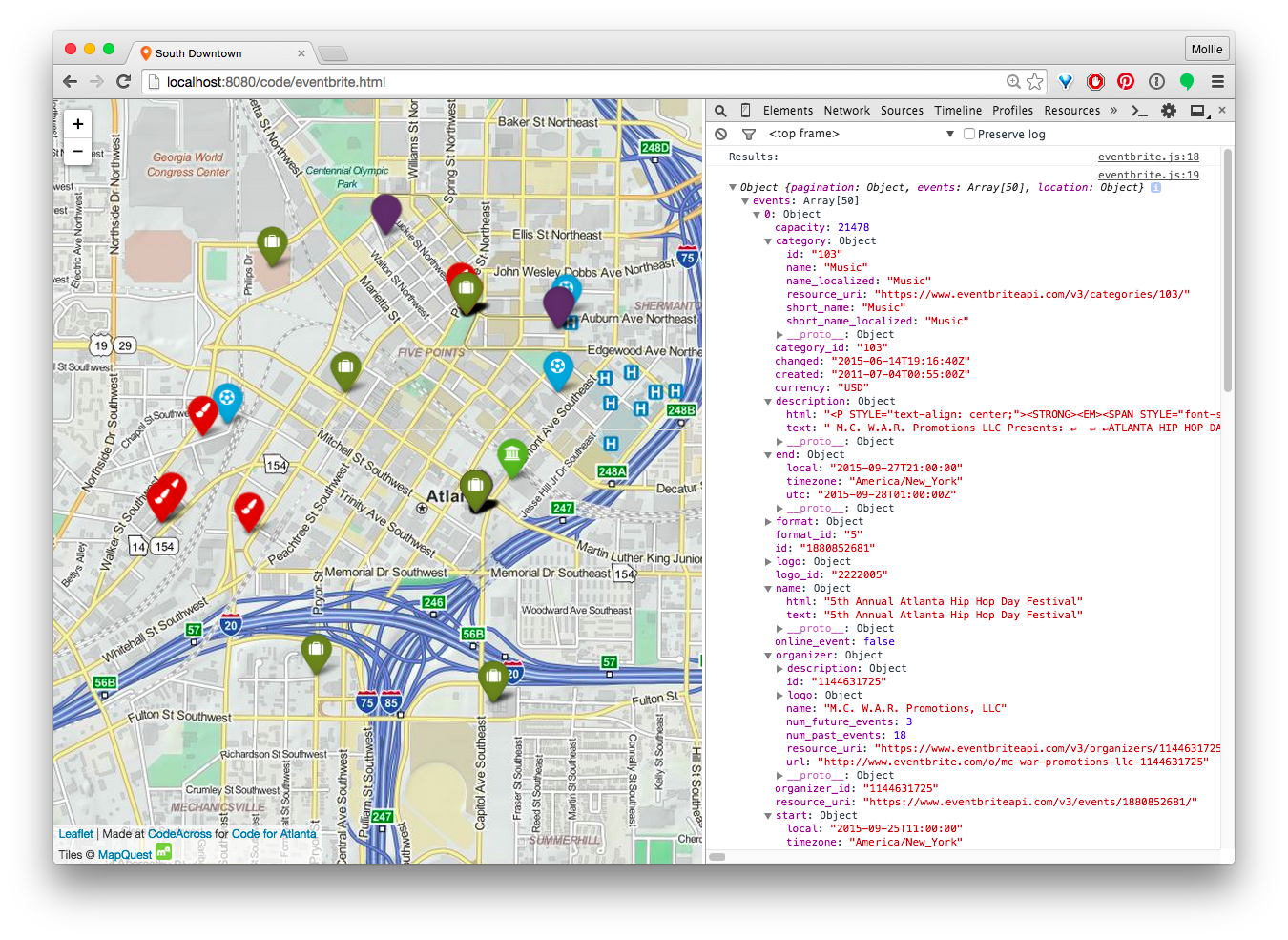

## Viewing results in the console
![:scale 95%](images/eventbrite-console-log.png)
---
# Set Up Map
```js
var map = L.map('map', {
  attributionControl: false,
  center: new L.LatLng(33.75, -84.392),
  zoom: 15
});
L.control.attribution({position: 'bottomleft'}).addTo(map);

L.tileLayer('http://otile4.mqcdn.com/tiles/1.0.0/osm/{z}/{x}/{y}.png', {
 attribution:
 'Made at <a href="http://www.codeforamerica.org/events/codeacross-2015/">CodeAcross</a> for <a href="http://www.codeforatlanta.org/">Code for Atlanta</a>' +
 ' Tiles © <a href="http://www.mapquest.com/" target="_blank">MapQuest</a> <img src="http://developer.mapquest.com/content/osm/mq_logo.png" />',
 maxZoom: 18
}).addTo(map);```
---
# Map Points
```js
var eventbriteLayer = L.layerGroup();

$.getJSON(API_ENDPOINT
  .replace('EB_TOKEN', EB_TOKEN), function(result, status) {

if (status !== 'success') return alert('Request to Eventbrite failed');

// transform venue result into map marker
 for (var i = 0; i < result.events.length; i++) {
 var venue = result.events[i].venue;
 var eventInfo = result.events[i];
 var category = "";
 if (eventInfo.category !== null && eventInfo.category.name !== null) {
 category = eventInfo.category;
 }

var latlng = L.latLng(venue.latitude, venue.longitude);
 var marker = L.marker(latlng, {
 icon: makeMarker(category)
 })
 .bindPopup('' + venue.name + ' <a href="' + eventInfo.url + '" target="_blank">' + eventInfo.name.html + '</a> Begins: ' + eventInfo.start.local.substr(0,10) + ' ' + eventInfo.organizer.name + ' ' + category.name)
 .addTo(map);
 }
});```
---
name: inverse
layout: true
class: center, middle, inverse
---
# Swift Example
---
layout: true
class: center, middle
---
## Swift Example
![:scale 60%](images/tiy-lunch.png)

[Download the code](https://github.com/ProximityViz/TIY-Lunch-iOS)

[Download the app](http://appstore.com/proximityvizllc/theironyardatllunch/)
---
layout: false
# A Complete Query
```swift
let API_URL = "https://api.foursquare.com/v2/"
let CLIENT_ID = "UTSGJ2ZPLOL2LHDOHW5XZFYHVASA4B0JIYMOXH3ZW1TLQ1X1"
let CLIENT_SECRET = "IOGOZ0YYX2CDS1CLO1ASXZU5EQ3MYSYUKXIP2SPD5MZ4CKKH"

let requestString = API_URL + "venues/" + id
    + "?" + "client_id=" + CLIENT_ID
    + "&" + "client_secret=" + CLIENT_SECRET
    + "&" + "v=20130815"
```
---
## Make Query and Get Response
```swift
let requestString = API_URL + "venues/" + id
    + "?" + "client_id=" + CLIENT_ID
    + "&" + "client_secret=" + CLIENT_SECRET
    + "&" + "v=20130815"

if let url = NSURL(string: requestString) {

let request = NSURLRequest(URL: url)

    // dictionary with array of venues
    if let data = NSURLConnection.sendSynchronousRequest(request, returningResponse: nil, error: nil) {

        if let returnInfo = NSJSONSerialization.JSONObjectWithData(data, options: NSJSONReadingOptions.MutableContainers, error: nil) as? [String:AnyObject] {

            if let responseInfo = returnInfo["response"] as? [String:AnyObject] {

                let venue = responseInfo["venue"] as [String:AnyObject]
                return venue
            }
        }
    }
}
```
---
# Mapping the Locations
```swift
func mapView(mapView: RMMapView!, layerForAnnotation annotation: RMAnnotation!) -> RMMapLayer! {

    var markerImage = "restaurant"
    var markerSize = "small"
    var markerColor = greenColor

    switch annotation.userInfo.objectForKey("Type") as String {

    case "Eating":
        markerImage = "restaurant"
        markerColor = yellowColor
        foodAnnotations.append(annotation)
    ...
    }

    switch annotation.userInfo.objectForKey("Count") as String {

    case "1":
        markerSize = "small"
    ...

    }
```
---
# Mapping the Locations
```swift
    // marker and callout
    var lunchMarker = RMMarker(mapboxMarkerImage: markerImage, tintColorHex: markerColor, sizeString: markerSize)
    lunchMarker.canShowCallout = true

    var rightArrowButton = ArrowButton(frame: CGRectMake(0, 0, 28, 44))
    rightArrowButton.strokeColor = greenUIColor

    lunchMarker.rightCalloutAccessoryView = rightArrowButton

return lunchMarker

}
```
---
# Swift Code
### API Request
[FourSquareRequest.swift](https://github.com/ProximityViz/TIY-Lunch-iOS/blob/master/TIY%20Lunch/FourSquareRequest.swift)

### Map of All Venues
[MainMapVC.swift](https://github.com/ProximityViz/TIY-Lunch-iOS/blob/master/TIY%20Lunch/MainMapVC.swift)

### Map and Info For Each Venue
[VenueVC.swift](https://github.com/ProximityViz/TIY-Lunch-iOS/blob/master/TIY%20Lunch/VenueVC.swift)
---
template: inverse

# The End!

Slideshow created using [remark](http://github.com/gnab/remark).
---
name: last-page
template: inverse
# Show-and-Tell
